Thermal Conductive Gap Filler - TCP600

  • Brand Name: SinoGuide
  • Model Number: TCP600
  • Material: Silicone&Ceramic
  • Thermal Conductivity: 6.0 W/m.k
  • Material Details:Full Range Of Silicone Thermal Conductive Pad 1.0-7.5W/m.k; Silicone Thermal Conductive Gap Filler Pad TCP600 Series; 6.00 W/mk High Thermal Conductivity; Low Thermal Resistance at Low Pressure; Natur
  • contact now click here send inquiry
As electronic devices shrink in size and expand in functionality, the requirements for thermal solutions are ever-increasing. The TCP Series’ economical and performance advantages will allow us to optimize new and existing client applications in the growing RTV &TIM market segments. Silicone cooling conductive  thermal pad from SinoGuide, it is high shock absorbing and able to fill gaps perfectly, thermal conductivity is 1~8.0W/mK, able to be adjusted if needed. Commonly used in communications equipment, computers and peripherals, power conversion devices, memory modules, chip scale package and areas where heat needs to be transferred to a frame, chassis or other of heat spreader occasions. Provide sheet form and custom die-cutting.


6.00 W/mk High Thermal Conductivity

Low Thermal Resistance at Low Pressure
Naturally tacky for easy application


Between heat-generation component and heatsink.

Automotive engine control, Graphices Cards, Telecom device.
Wireless Hub,Military equipment, power supply.
Cooling Module, Thermal module.
Telecommunication Hardware

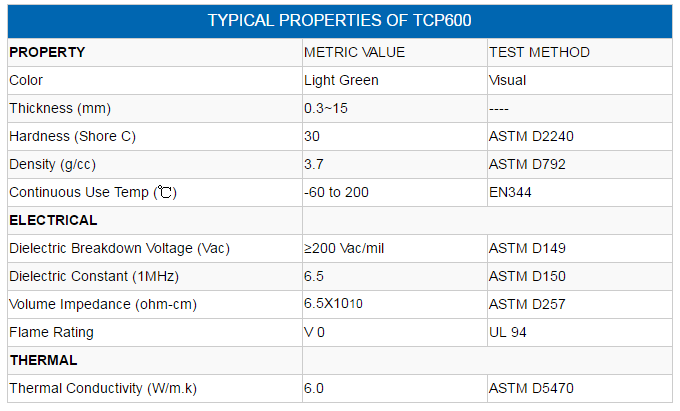

Typical Properties TCP600 thermal conductive gap filler

Configurations Available:

Sheet size:200 x 400mm, 350x350mm , individual parts available

Part No. Code:

thermal pad part no code

Suffix: Different Options For thermal Pad as below

“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“A2” suffix: Two sides additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer

Check List of Reliability Test Report for TCP600 is available after your request

thermal pad test equipment

Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

Product Photos:

thermal pad tcp600

sinoguide thermal pad tcp600

6Wmk High Thermal Conductivity tcp600

Silicone Thermal Conductive Pad tcp600


Our Certifications

Strong Logistics System:

Strong Logistics System

Company Information:

SinoGuide production lineSinoGuide production procedureSinoGuide laboratory equipments

Our Advantage:

Our Advantage why choose us sinoguide


1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.

2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.

3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.

4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.

5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
