TCP110U series TIM materials are ideal for cooling automotive electronics, power converters, LED lighting modules, communications modules, and other electronics. Notable automotive market applications include; hybrids, ECUs (engine control units), battery packs, and sensors.

Main Features:

Thermal conductivity:1.10 W/mk
Fiberglass Reinforcement
Naturally tacky on one side for easy assembly
Electrically insulating
Resist to puncture,shear and tear

Typical Applications:

Power Conversion/Supply
Ballast For Led Lighting,
Wireless Hub,Telecom device.
Cooling Module, Thermal module.
Telecommunication Hardware
Auto Engine, Electric Vehicle Battery

TYPICAL PROPERTIES OF TCP110U
PROPERTY	METRIC VALUE	TEST METHOD
Color	Pink /White	Visual
Reinforcement Carrier	Fiberglass	----
Thickness (mm)	0.5~15	----
Hardness (Shore C)	5, 15	ASTM D2240
Density (g/cc)	2.2	ASTM D792
Tensile Strength (KN/m2)	2.5	ASTM D412
Continuous Use Temp (℃)	-40 to 200	EN344
ELECTRICAL
Breakdown Voltage (Kv/mm)	≥6.50	ASTM D149
Dielectric Constant (1MHz)	5.5	ASTM D150
Volume Impedance (ohm-cm)	1.1 x1011	ASTM D257
Flame Rating	V 0	UL 94
THERMAL
Thermal Conductivity (W/m.k)	1.1	ASTM D5470 or Hot Disk

Standard Sheet and Roll Sizes:

Sheet size: 200mmx400mm,300mm x 300mm,individual parts available. Roll Form available(300mm width)

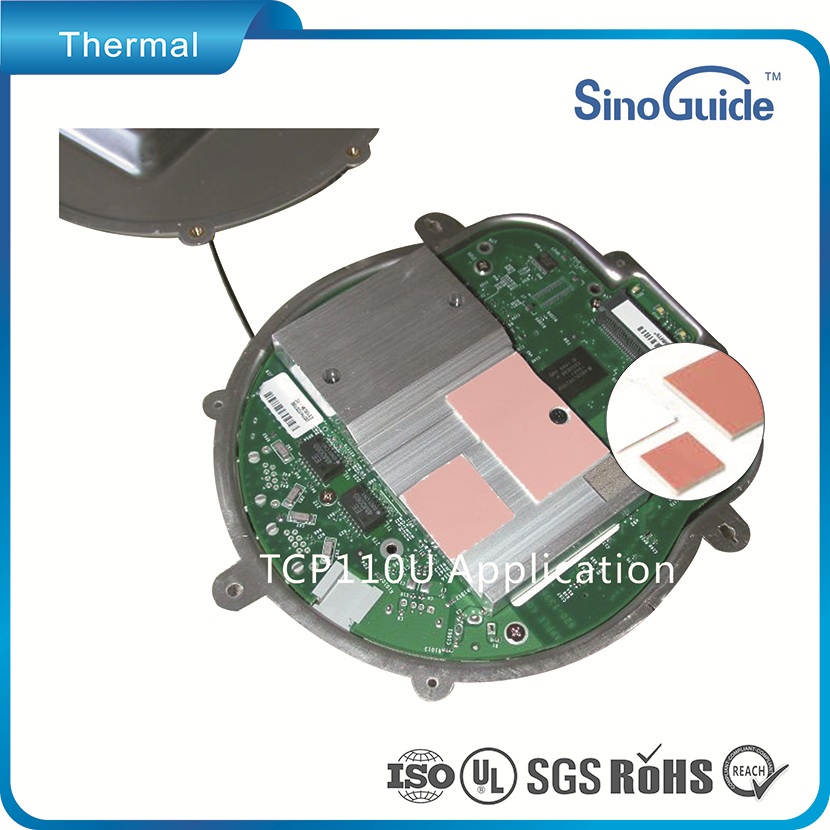

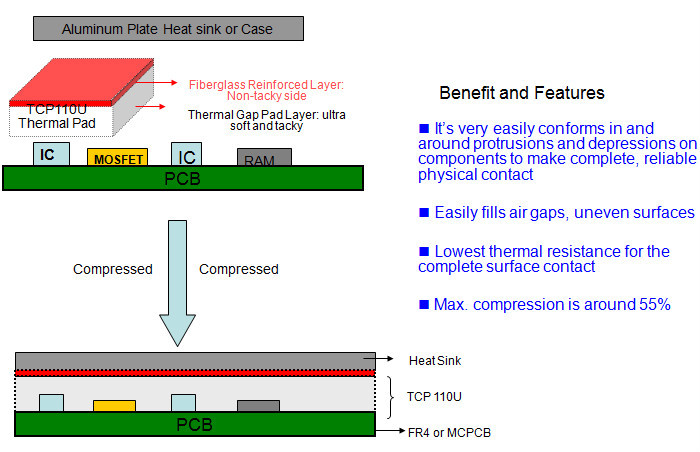

TCP110U Application Guide

Part No.Code:

Suffix: Different Options For thermal Pad as below

“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky

Check List of Reliability Test Report for TCP110U is available after your request

Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

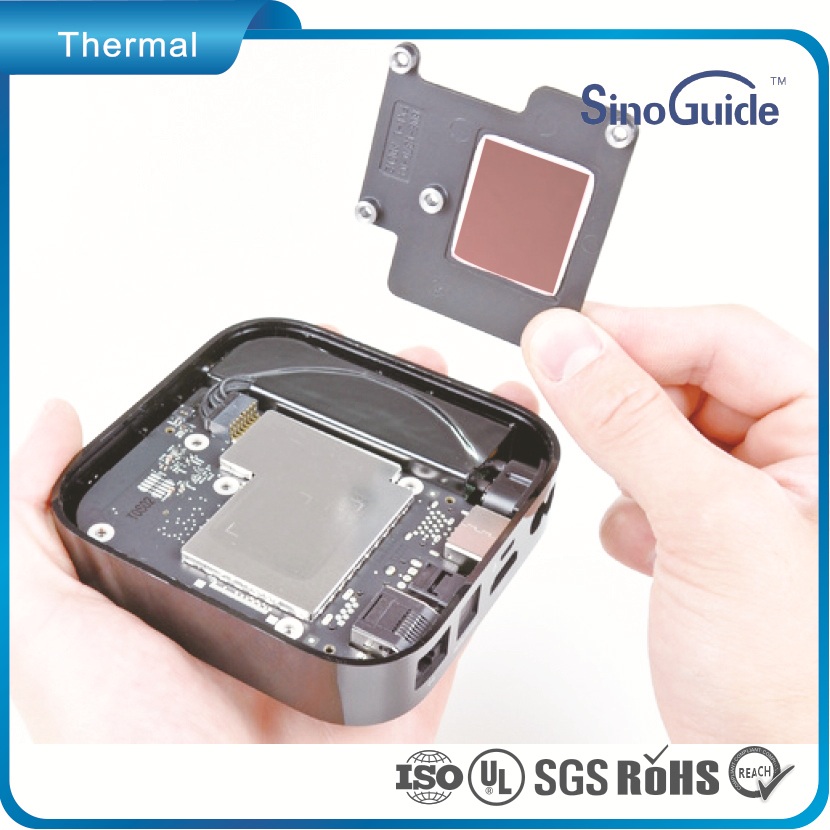

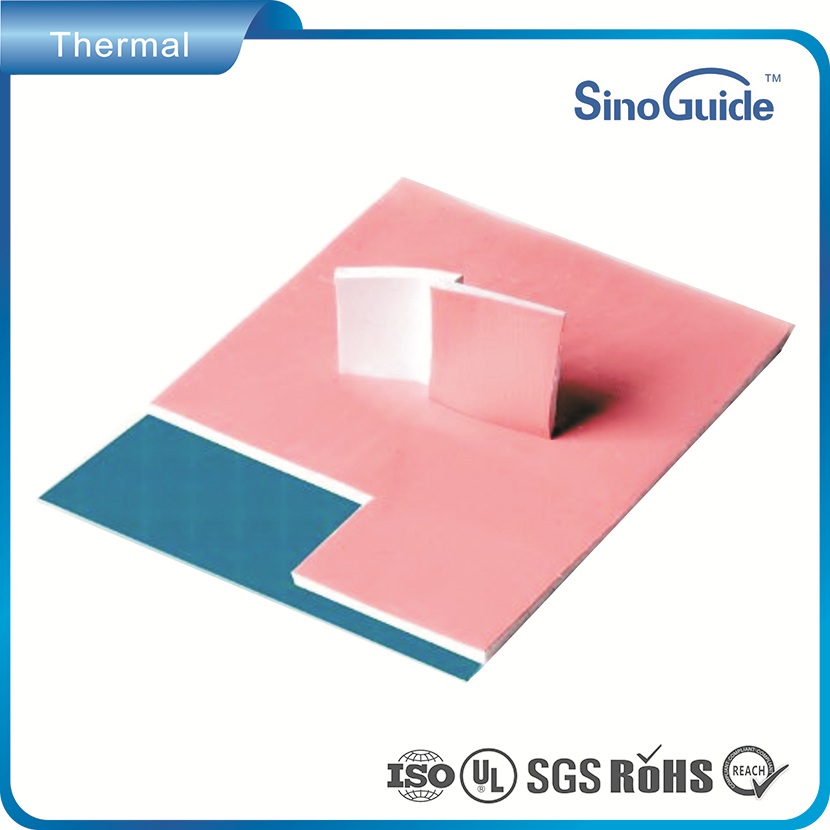

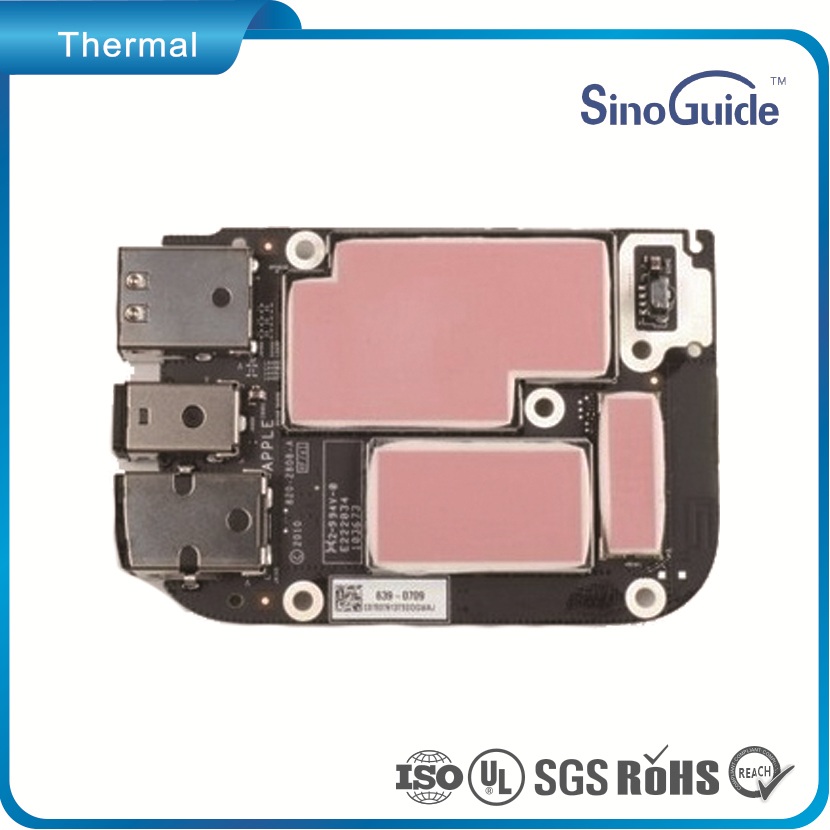

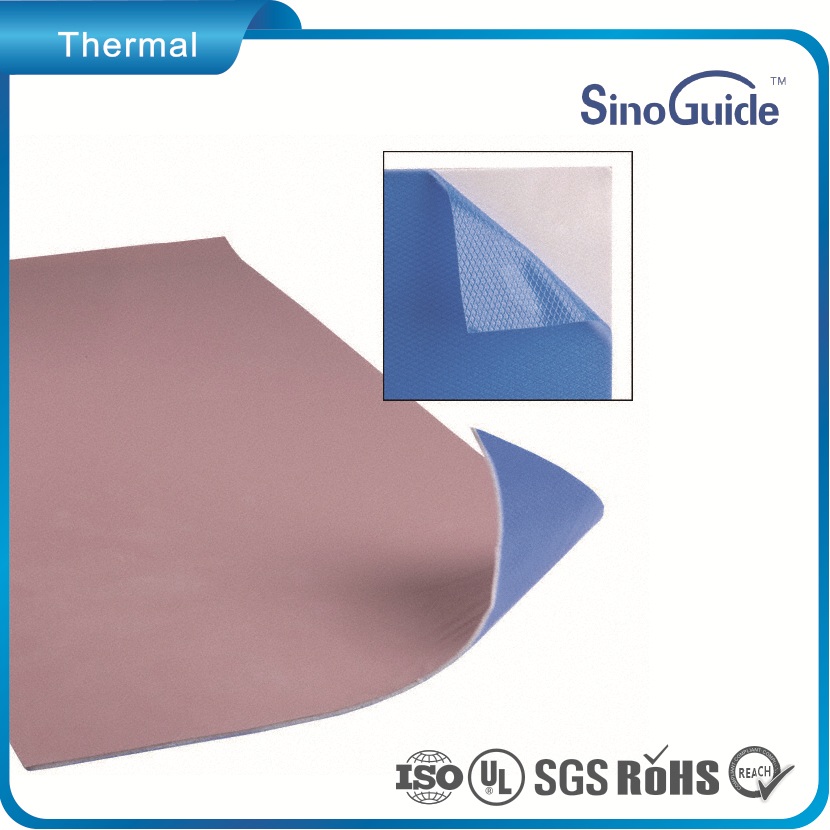

Product Photos:

Company Information:

Our Advantage:

FAQ:

1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.

2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.

3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.

4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.

5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
