Thermal Conductivity Double-sided Adhesive Tapes
- Brand Name: SinoGuide
- Model Number: TCT120
- Material: Acrylic Polymer
- Thermal Conductivity: 1.2 W/m.k
- Material Details:Heat-Resistant Feature and Pressure Sensitive Adhesive Tape Thermal Release Adhesive Double Sided Tape; Electrically Isolating Thermal Tape/Thermal Conductive Tape
Electrically Isolating Thermal Tape/Thermal Conductive Tape
SinoGuide thermal conductivity double-sided adhesive With high thermal conductivity and insulation properties and compression, adhesion, Can fill the uneven surface, Can be tightly and firmly fit the heat source devices and heat sink, Has strong adhesive strength, and thermal resistance is small, effectively replace the grease and mechanical fixation, A large number of applications in the bonding heat sink to the microprocessor and other power consumption of the semiconductor.
Widely applied: high power LED,High power power supply, automotive electronic heating module, motor controller, communication equipment, power semiconductor, MOS tube, power tube, IGBT chip, high voltage, high temperature, high power welder, display, computer, Video Card RAM, DDR Memory Modules, SSD drives,solar , New energy heating power devices.
Features: With the features of high thermal conductivity, insulation, strong stickiness, softness, compression, thermal double conductive tape is great helper to solve heat dissipation for many electronics products.
Easy to use: Just stick on surface of any object and tear the blue release paper, which can be tightly and firmly conglutinate on the heat source devices and heat sink to speed the heat dissipation.
Double-sided thermal adhesive tape at low cost solve the problem of both good heat dissipation and strong stickness, while improving the work efficiency. Which make the heat sink and IC chip bonding, make high power LED and heat aluminum bonding, replaced with a screw fixed, to achieve the most effective thermal dissipation.
TYPICAL PROPERTIES OF TCT120 | ||
PROPERTY | METRIC VALUE | TEST METHOD |
Color | White | Visual |
Thickness (mm) | 0.15; 0.20; 0.25;0.50 | ---- |
Adhesive Type | Acrylic Polymer | ---- |
Carrier | w or w/o Fiberglass | ---- |
Hardness (Shore A) | 40 | ASTM D2240 |
Density (g/cm2) | 1.3 | ASTM D792 |
Tensile Strength (lbs/in ) | 180 | ASTM E1269 |
Continuous Use Temp (℃) | -40 ~ 150(short term) 90(long term) | EN344 |
ELECTRICAL | ||
Dielectric Breakdown Voltage (Vac) | ≥3 kVac/m | ASTM D149 |
Dielectric Constant (1MHz) | 5 | ASTM D150 |
Volume Impedance (ohm-cm) | 1 x1013 | ASTM D257 |
THERMAL | ||
Thermal Conductivity (W/m.k) | 1.2 | ASTM D5470 |
Check List of Reliability Test Report for TCT120 is available after your request
Below info will be helpful for your right application
How to transfer or dissipate the heat from the heat-generating components to heat sinks?
How To Select the Right Thermal Interface Materials for your new application?
Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

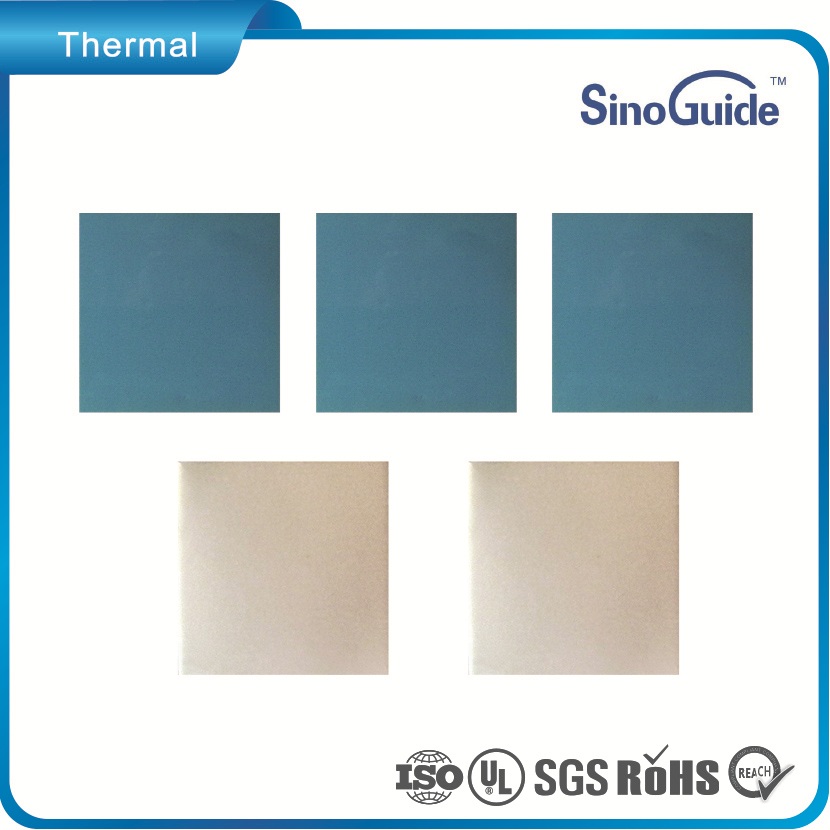

Product Photos:
